| Tên thương hiệu: | WEICHAI engine |
| Số mẫu: | MB-280 |
| MOQ: | 1pc |
| giá bán: | Price:Negotiable |
| Điều khoản thanh toán: | Liên minh phương Tây, T/T, D/P, L/C. |
| Khả năng cung cấp: | 200pcs/tháng |
Rust removal in pickling tank (10 minutes) → Unoil (30 mins) → Rinsing (3 mins) → Water setting (10 mins) → Rinsing (5 mins) → Parkerising (20 mins) → Rinsing → Blow dry → Stoving → Pylons → Spray paint (static flame paint) → Oven (170°C/20 mins) → Draw a charge → Inserting coil.

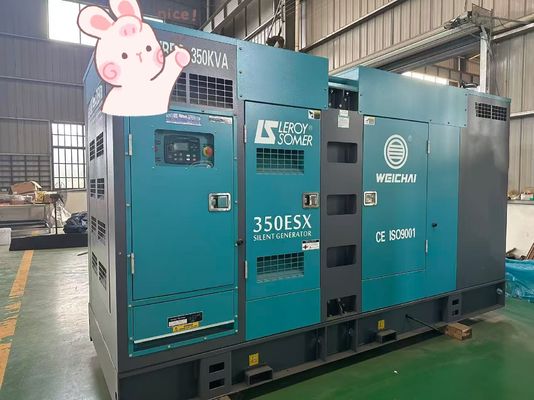

| Model | MB-280 |
| Output Power | 280KW/350KVA |
| Power Factor | COSΦ=0.8 (lagging) |
| Maximum Output Current | 504A |
| Weight | 2100kg (Net) |
| Dimensions | 3050 * 1040 * 1550mm |
| Voltage | 400/230V |
| Frequency | 50Hz |
| Manufacturer | Weichai Diesel Engine |
| Model | WP10D320E200 |
| Rotate Speed | 1500RPM |
| Power | 320KW |
| Fuel Consumption | ≤ 210g/kw.h |
| Cylinder/Stroke | 126 * 130 mm |
| Compression Ratio | 17:1 |
| Displacement | 9.726L |
| Configuration | 6-cylinder in-line, four-stroke, water-to-air cooling |
| Cooling Mode | Liquid Cooled |
| Speed Control System | Electronic |
| Starting Mode | 24V DC |
| Filter System | Dry air filter, fuel filter, oil filter |
| Manufacturer | LEROY-SOMER Alternator |
| Model | TAL-A46-G |
| Voltage Control Mode | AVR (automatic voltage regulation) |
| Voltage Regulation | ±1% |
| Rated Voltage/Frequency/Power Factors | 400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire |
| Steady State Frequency | Better than 5% |
| No-load Voltage Adjust Range | ≥95% - 105% |
| Insulation Class/Protection Class | H / IP22 |
| Excitation Type | Brushless |
| Rated Power | Engine | Alternator | Control Panel |
|---|---|---|---|
| 24kw~1500kw | Cummins | Stamford, Leroy somer, Marathon, Mecc alte, ABB, Chinese alternators | Deepsea, ComAp, Harsen, Smartgen |
| 36kw~1800kw | Perkins | ||
| 68kw~560kw | Volvo | ||
| 20kw~200kw | Deutz | ||
| 40kw-2200kw | Yuchai | ||
| 50kw-2200kw | Weichai | ||
| 540kw-1900kw | Mitsubishi | ||
| 50kw-800kw | SDEC | ||
| 650kw~2200kw | Chinese engine |
Mingbang Power Perkins Diesel Generating Set offers power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, with over 80 years of experience as a leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins' strength lies in its ability to tailor engines precisely to meet customers' requirements, trusted by more than 1,000 leading manufacturers across industrial, construction, agricultural, materials handling and electrical power generation markets.
Our factory features CCEC, DCEC, VOLVO, PERKINS, MTU, Deutz, Daewoo, SDEC, Weichai, Jichai and other world-renowned engines for generator sets. We specialize in synchronous 100% copper wire alternators with over 20 years of experience. The MB brand alternator has expanded worldwide, with power range from 6.5KW to 2000KW.
